Product Description | |

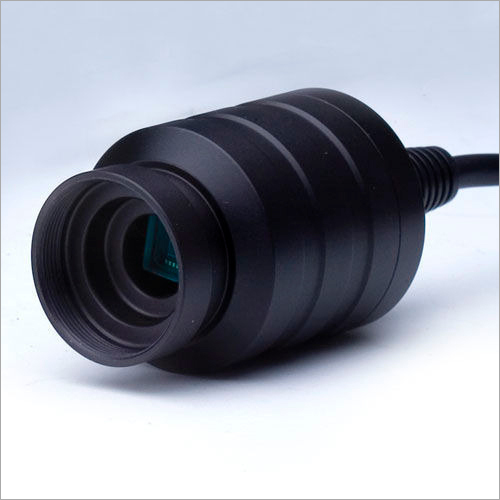

Product Name | Endoscopy CCD Camera |
Model No | CT-300HC |
Business type | Manufacturing & Sales |
Warranty | 2 Year |
Monthly Production | As per client Requirements |
Export Markets | Yes |
Experience | 2002 |
Min. order quantity | As per Order |
After-Sales Service Provided | Yes |
Packaging Detail | Box |
Delivery Time | Within 2-3 Weeks |
By Surface | Sea or Air |
| |
Technical Specification | |
Model | CT -300HC |
TV System(choseable) | NTSC PAL |
Image Sensor | 1/3 Inter Line Transfer CCD |
Total No of Pixels | 811(H)x508(v) 795(H)x596(v) |
Effective Resolution | 768(H)x494(v) 752(H)x582(v) |
Aspect Ratio | 4:3 |
Sensitivity | 950Mw 950Mw |
Scanning Systems | 2:1Interlaced |
Sync.System | Internal |
Horizontal Lines | 450 TV Lines 480 TV Lines |
Video Outout | CVBS(1Vp-p.750Q) |
White Balance | Manual/Auto White Balance Control Mode |
Gain Control | Automatic Gain Control |
Signal/Noise Ratio | 48dB(AGC off) |
Electronic Shutter Speed | 1/60~1/100,000sec 1/50~1/100,000sec |
Supply Voltage | DC 12V (+-10%) |
Supply Current | 150mA |
Power Consumption | 18W |
Operating Temperature | -10 ~ 50'C |
Storage Temperature | -10 ~ 60'C |
Dimension | 38(W) x 30(H) x 26(D) |
Weight | 12g |
